POLYRED

The only approved insulated fully assembled primary feed and expansion tank on the market today. Just one from a range of innovative products introduced by POLYTANK.

handling

All plastic products should be handled carefully at all times to ensure long trouble-free life. Polytanks have been specially designed for strength and look, and are very robust, but they can be damaged.

on-site test

Always carefully test to avoid embarrassment. With multi-handling of the Polytank from manufacturers to merchants to plumber to site to cupboard or loft, it is inevitable that occasionally a tank will be damaged.

insulation

Always fit insulation, it is part of your PT2 package, which ensures your Polytank will deliver good quality drinking water to your taps, and meet all the requirements of British Standards.

important

Ensure warning pipe accommodates incoming supply. Fit restrictor to inlet if necessary.

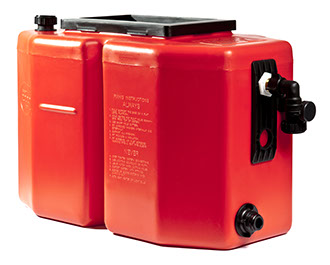

POLYRED Primary expansion tank 18 LITRES 4 GALLONS

PolyRED is a quick and easy to install, all components pre-fitted

PolyRED

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

MM

480

250

320

INCHES

18

12

Comes

fully assembled

The 18 ltr PolyRED primary expansion tank comes with a fitting kit, which includes:

• Fitting Instructions

• Snap On Polylid

• Vent Pipe Sleeve (assembled)

• Screened Warning Pipe (assembled)

• ½” BS1212 Part 2 Ball Valve, Float and

Backplate (assembled)

• 15mm Push Fit Tank Connector (assembled)

• 15mm x ½” Angled Service Valve (assembled)

• Insulation and Ties

The only approved insulated fully assembled primary feed and expansion tank on the market today. Just one from a range of innovative products introduced by POLYTANK.

PolyRED is the only approved insulated fully assembled primary feed and expansion cistern on the market today.

This insulation is a high density specialist fibreglass. When tested in accordance with BS4213: 2004 gives improved figures of heat retension over all other methods of insulation.

All required components are fitted in PolyRED so there is no requirement to assemble. The installer has no need to drill and to clear up the mess made by drilling. There is no measuring required and overall PolyRED can be installed in virtually no time.

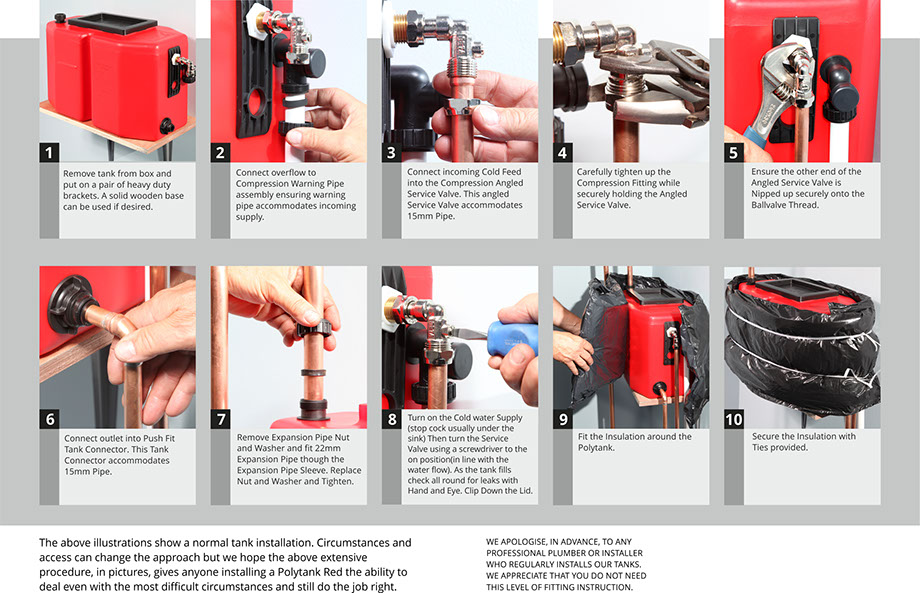

PolyRED fitting instructions
