handling
All plastic products should be handled carefully at all times to ensure long trouble-free life. Polytanks have been specially designed for strength and look, and are very robust, but they can be damaged.
on-site test
Always carefully test to avoid embarrassment. With multi-handling of the Polytank from manufacturers to merchants to plumber to site to cupboard or loft, it is inevitable that occasionally a tank will be damaged.
insulation
Always fit insulation, it is part of your PT2 package, which ensures your Polytank will deliver good quality drinking water to your taps, and meet all the requirements of British Standards.
important
Ensure warning pipe accommodates incoming supply. Fit restrictor to inlet if necessary.
18 LITRES 4 GALLONS
18-12-12
MAX. DIMENSIONS before fixing
LENGTH
WIDTH
HEIGHT
MM
480
250
320
INCHES
18
12
12

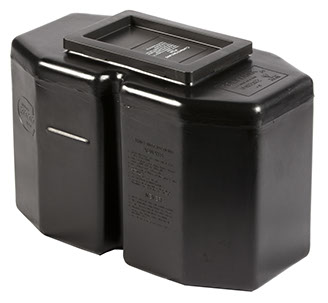

The 18 ltr Primary ExpansionTank comes with a fitting kit, which includes:
• Snap on Polylid 2
• Ballvalve Back Plate
• Screened warning Pipe Elbow
• ½" BS1212 Part 2 Ballvalve and 4½" Float
• 15mm Compression Tank Connector
• Sealing Washer
• Insulation and Ties
ORDER CODE 18-12-12

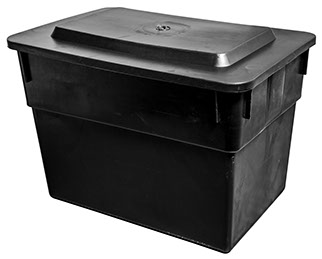

18-12-12 Budget
tank order code x10/4
lid order code x10/4Lid
insulation order code J4
MAX. DIMENSIONS before fixing
LENGTH
WIDTH
HEIGHT
MM
460
320
320
INCHES
18
12
12
