RECTANGULAR

All of our water storage tanks come ready to go and are designed with easy installation in mind. These tanks contain a full installation package, which comes complete with fittings and instructions, giving you all the tools you need to maintain your own home with ease. All of our water tanks are WRAS approved and BS4213:2004 Kitemarked.

handling

All plastic products should be handled carefully at all times to ensure long trouble-free life. Polytanks have been specially designed for strength and look, and are very robust, but they can be damaged.



on-site test

Always carefully test to avoid embarrassment. With multi-handling of the Polytank from manufacturers to merchants to plumber to site to cupboard or loft, it is inevitable that occasionally a tank will be damaged.

insulation

Always fit insulation, it is part of your PT2 package, which ensures your Polytank will deliver good quality drinking water to your taps, and meet all the requirements of British Standards.



important

Ensure warning pipe accommodates incoming supply. Fit restrictor to inlet if necessary.

55 LITRES   12 GALLONS

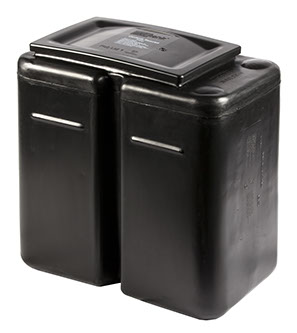

20-12-20

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 55 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

500

300

525

INCHES

20

12

20

ORDER CODE 20-12-20

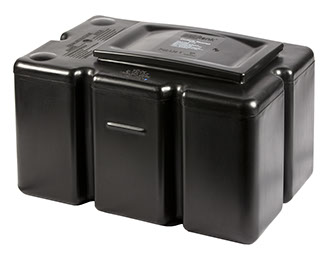

24-16-15

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 55 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

610

410

385

INCHES

24

16

15

ORDER CODE 24-16-15

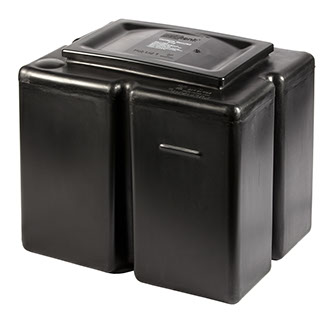

20-15-18

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 55 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

510

390

460

INCHES

20

15

18

ORDER CODE 20-15-18

68 LITRES   15 GALLONS

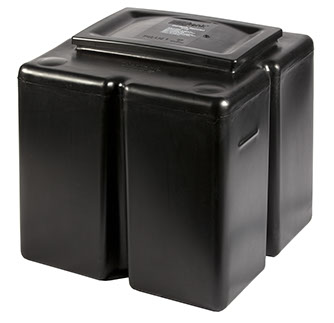

18-18-18

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 68 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

470

470

470

INCHES

18

18

18

ORDER CODE 18-18-18

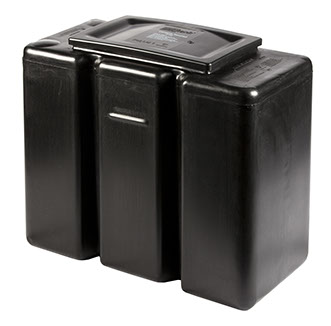

24-12-20

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 68 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

615

305

550

INCHES

24

12

20

ORDER CODE 24-12-20

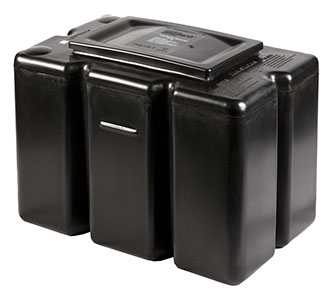

24-15-18

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 68 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

610

385

460

INCHES

24

15

18

ORDER CODE 24-15-18

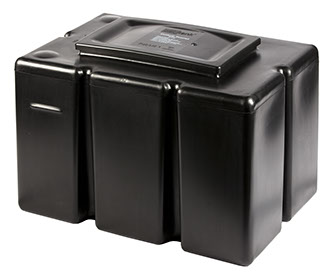

24-17-17

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 68 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

610

435

440

INCHES

24

17

17

ORDER CODE 24-17-17

82 LITRES   18 GALLONS

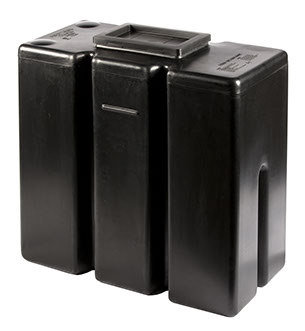

24-12-24

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 82 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

615

310

615

INCHES

24

12

24

ORDER CODE 24-12-24

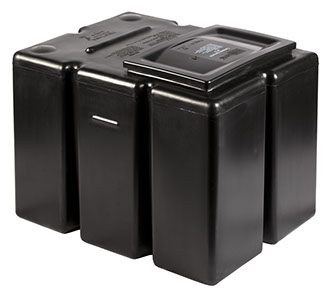

24-18-19

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 82 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

615

464

480

INCHES

24

18

19

ORDER CODE 24-18-19

91 LITRES   20 GALLONS

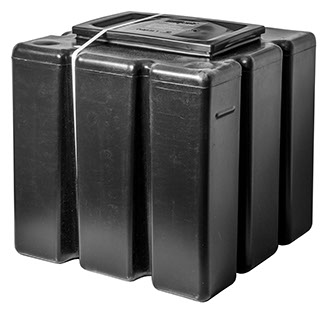

20-20-20

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 91 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

515

515

530

INCHES

20

20

20

ORDER CODE 20-20-20

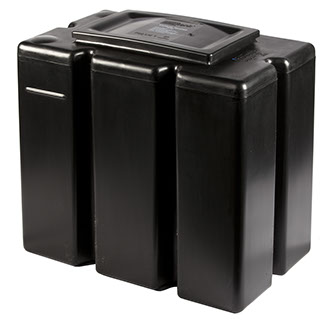

24-15-24

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 91 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

615

380

590

INCHES

24

15

24

ORDER CODE 24-15-24

114 LITRES   25 GALLONS

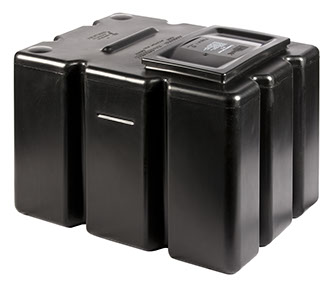

27-20-20

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 114 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

711

515

500

INCHES

27

20

20

ORDER CODE 27-20-20

136 LITRES   30 GALLONS

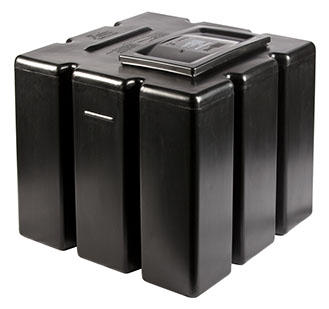

24-24-24

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 136 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

610

590

590

INCHES

24

24

24

ORDER CODE 24-24-24

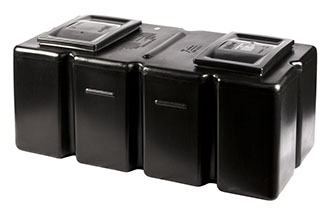

39-20-17

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 136 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

1000

500

440

INCHES

39

20

17

ORDER CODE 39-20-17

159 LITRES   35 GALLONS

30-24-23

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 159 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

750

570

570

INCHES

30

24

23

ORDER CODE 30-24-23

190 LITRES   42 GALLONS

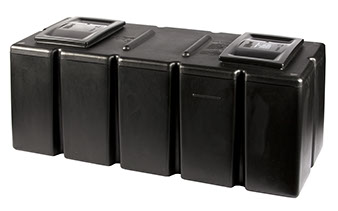

46-19-19

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 159 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

1185

510

490

INCHES

46

19

19

ORDER CODE 46-19-19

227 LITRES   50 GALLONS

46-24-19

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 227 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

1190

610

500

INCHES

46

19

19

ORDER CODE 46-24-19

36-24-23

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 227 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

925

600

570

INCHES

36

24

23

ORDER CODE 36-24-23
