POLYBLUE are New-age sizes which have been designed to suit the requirements of modern architecture.
We have branded these separately and manufactured them from blue Polymer for easy identification. They are produced to the same stringent requirements as our standard Polytanks in ISO9001:2015 quality controlled factories.
We are WRAS approved and kitemarked.
handling
All plastic products should be handled carefully at all times to ensure long trouble-free life. Polytanks have been specially designed for strength and look, and are very robust, but they can be damaged.
on-site test
Always carefully test to avoid embarrassment. With multi-handling of the Polytank from manufacturers to merchants to plumber to site to cupboard or loft, it is inevitable that occasionally a tank will be damaged.
insulation
Always fit insulation, it is part of your PT2 package, which ensures your Polytank will deliver good quality drinking water to your taps, and meet all the requirements of British Standards.
important
Ensure warning pipe accommodates incoming supply. Fit restrictor to inlet if necessary.

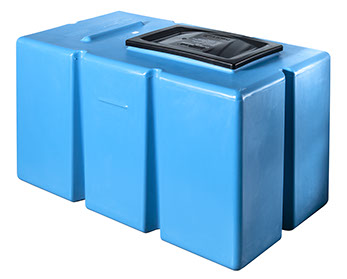

114 LITRES 25 GALLONS
32-18-19
MAX. DIMENSIONS before fixing
LENGTH
WIDTH
HEIGHT
MM
813
457
483
INCHES
32
18
19
The 114 ltr Rectangular Water Tank comes with a fitting kit, which includes:
• Polytank Byelaw 30 kit and fitting instructions
• 1/2" BS1212 Part 2 ball valve and 4 1/2" float
• Ball valve back plate
• 22mm compression tank connector
• 15mm x 1/2" angled service valve
• Insulation and ties
ORDER CODE 32-18-19
114 LITRES 25 GALLONS
46-15-17
MAX. DIMENSIONS before fixing
LENGTH
WIDTH
HEIGHT
The 114 ltr Rectangular Water Tank comes with a fitting kit, which includes:
• Polytank Byelaw 30 kit and fitting instructions
• 1/2" BS1212 Part 2 ball valve and 4 1/2" float
• Ball valve back plate
• 22mm compression tank connector
• 15mm x 1/2" angled service valve
• Insulation and ties
MM
1190
380
420
INCHES
46
15
17
ORDER CODE 46-15-17

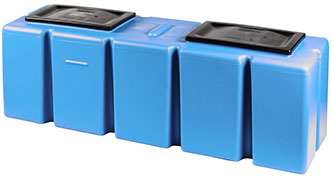

190 LITRES 42 GALLONS
COMING
SOON
46-19-19
MAX. DIMENSIONS before fixing
LENGTH
WIDTH
HEIGHT
The 190 ltr Rectangular Water Tank comes with a fitting kit, which includes:
• Polytank Byelaw 30 kit and fitting instructions
• 1/2" BS1212 Part 2 ball valve and 4 1/2" float
• Ball valve back plate
• 22mm compression tank connector
• 15mm x 1/2" angled service valve
• Insulation and ties
MM
1185
510
490
INCHES
46
19
19
ORDER CODE 46-19-19
227 LITRES 50 GALLONS
COMING
SOON
46-24-19
MAX. DIMENSIONS before fixing
LENGTH
WIDTH
HEIGHT
The 227 ltr Rectangular Water Tank comes with a fitting kit, which includes:
• Polytank Byelaw 30 kit and fitting instructions
• 1/2" BS1212 Part 2 ball valve and 4 1/2" float
• Ball valve back plate
• 22mm compression tank connector
• 15mm x 1/2" angled service valve
• Insulation and ties
MM
1190
610
500
INCHES
46
24
19
ORDER CODE 46-24-19
227 LITRES 50 GALLONS
COMING
SOON
64-18-19
LENGTH
WIDTH
HEIGHT
The 227 ltr Rectangular Water Tank comes with a fitting kit, which includes:
• Polytank Byelaw 30 kit and fitting instructions
• 1/2" BS1212 Part 2 ball valve and 4 1/2" float
• Ball valve back plate
• 22mm compression tank connector
• 15mm x 1/2" angled service valve
• Insulation and ties
MAX. DIMENSIONS before fixing
MM
1650
460
475
INCHES
64
18
19
ORDER CODE 64-18-19
