'COFFIN' TANKS

All of our water storage tanks come ready to go and are designed with easy installation in mind. These tanks contain a full installation package, which comes complete with fittings and instructions, giving you all the tools you need to maintain your own home with ease. All of our water tanks are WRAS approved and BS4213:2004 Kitemarked.

handling

All plastic products should be handled carefully at all times to ensure long trouble-free life. Polytanks have been specially designed for strength and look, and are very robust, but they can be damaged.



on-site test

Always carefully test to avoid embarrassment. With multi-handling of the Polytank from manufacturers to merchants to plumber to site to cupboard or loft, it is inevitable that occasionally a tank will be damaged.

insulation

Always fit insulation, it is part of your PT2 package, which ensures your Polytank will deliver good quality drinking water to your taps, and meet all the requirements of British Standards.



important

Ensure warning pipe accommodates incoming supply. Fit restrictor to inlet if necessary.

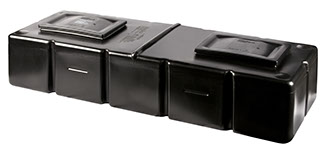

114 LITRES   25 GALLONS

55-20-12

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 114 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

1390

500

310

INCHES

55

20

12

ORDER CODE 55-20-12

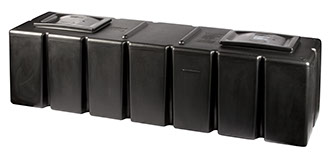

227 LITRES   50 GALLONS

64-18-19

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 227 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

1650

460

475

INCHES

64

18

19

ORDER CODE 64-18-19

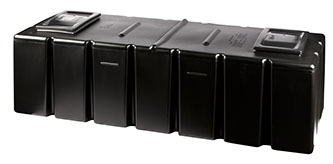

318 LITRES   70 GALLONS

64-24-19

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 318 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

1650

610

500

INCHES

64

24

19

ORDER CODE 64-24-19

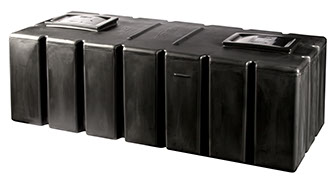

454 LITRES   100 GALLONS

64-26-23

MAX. DIMENSIONS before fixing

LENGTH

WIDTH

HEIGHT

The 454 ltr Rectangular Water Tank comes with a fitting kit, which includes:



Polytank Byelaw 30 kit and fitting instructions

1/2" BS1212 Part 2 ball valve and 4 1/2" float

Ball valve back plate

22mm compression tank connector

15mm x 1/2" angled service valve

Insulation and ties

MM

1680

695

580

INCHES

64

26

23

ORDER CODE 64-26-23
